PRIMA HL-075-01 | infoline

HL-075-01

Product Code : HL-075-01

Symmetrical Wooden Sliding Doors Hardware

Features

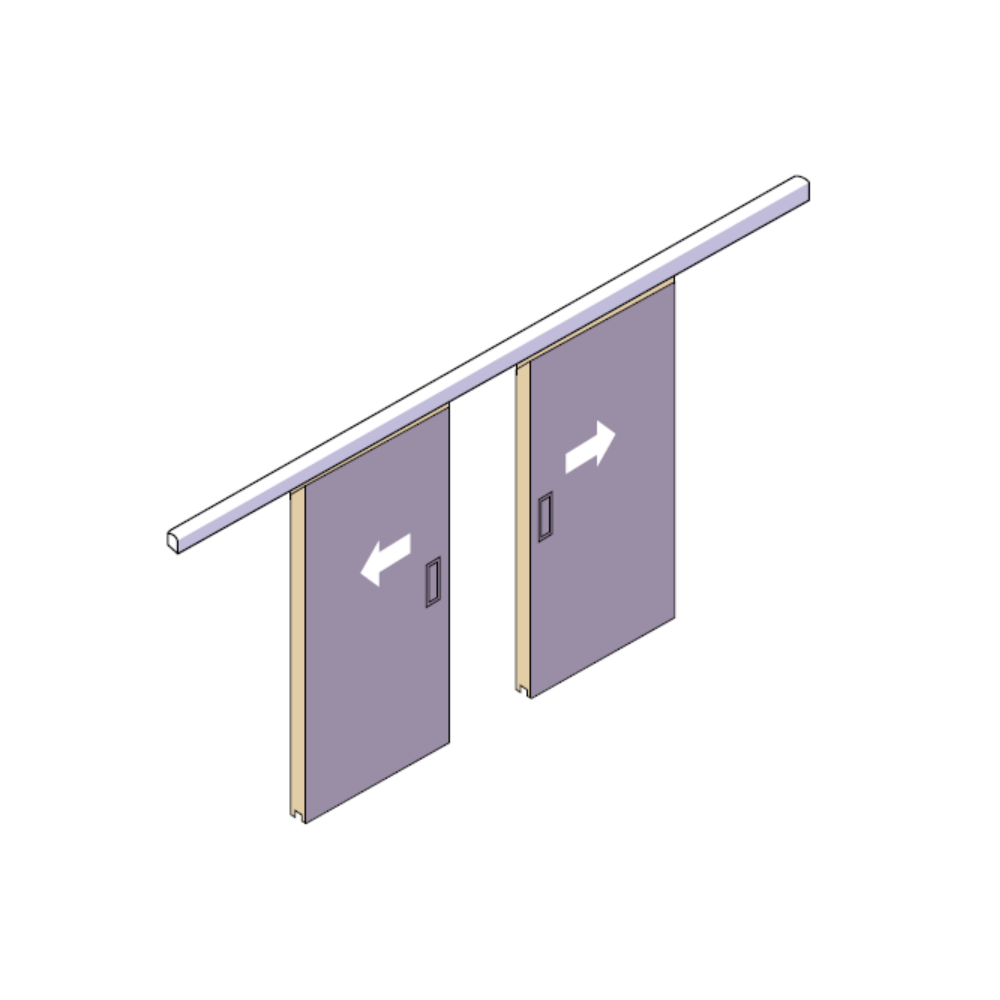

For double leaf sliding doors, synchronized inversion sliding system for double door
Height adjustment: 3mm
Max door weight: 80kgs
Door thickness: 30-45mm
Door width: 500-1200mm
With 2.0 Mtr Track
With 4.0 Mtr Track

Material and Finishes

Sliding track: Aluminium, Anodized
Hanging roller: Zinc Alloy, SN
Bracket: Iron, SN

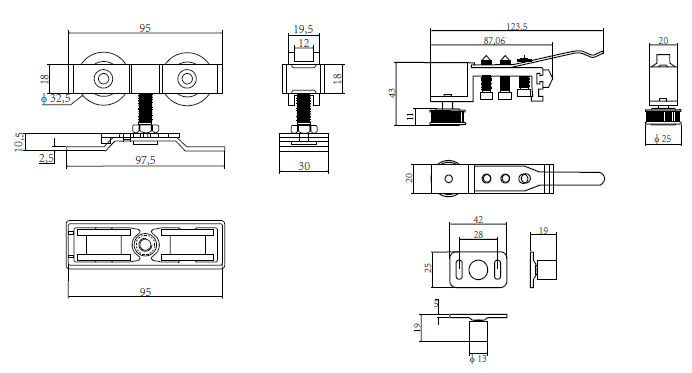

Standard Configuration

- Hanging Roller (4/pcs)

- Bracket (4/pcs)

- Door Stop (2/pcs)

- Door Stop (2/pcs)

- Connector for Belt (2/pcs)

- Fixing Device for Belt (1/pcs)

- Belt 10 Meters (1/pcs)

- Bottom Guide (2/pcs)

- Screw (1/pcs)
